Product Summary

The M57962L is a hybrid integrated circuit designed for driving n-channel IGBT modules in any gate amplifier application. This M57962L operates as an isolation amplifier for these modules and provides the required electrical isolation between the input and output with an opto-coupler. Short circuit protection is provided by a built in desaturation detector. A fault signal of the M57962L is provided if the short circuit protection is activated.

Parametrics

M57962L absolute maximum ratings: (1)Output Current IOH f = 20kHz, 50% Duty Cycle: 0.5 Amperes; (2)Isolation Voltage VRMS Sinewave Voltage 60Hz, 1 min: 2500 Volts; (3)Junction Temperature Tj: 85℃; (4)Operating Temperature Topr (Differs from H/C Condition): -20 ~ 60 ℃; (5)Storage Temperature tstg: -25 ~ 100℃; (6)Fault Output Current IFO: 20 mA; (7)Input Voltage VR1: 50 Volts.

Features

M57962L features: (1)Built in high CMRR optocoupler (VCMR : Typical 30kV/ms, Min. 15kV/ms); (2)Electrical Isolation between input and output with opto couplers (Viso = 2500, VRMS for 1 min.); (3)TTL compatible input interface; (4)Two supply drive topology; (5)Built in short circuit protection circuit with a pin for fault output.

Diagrams

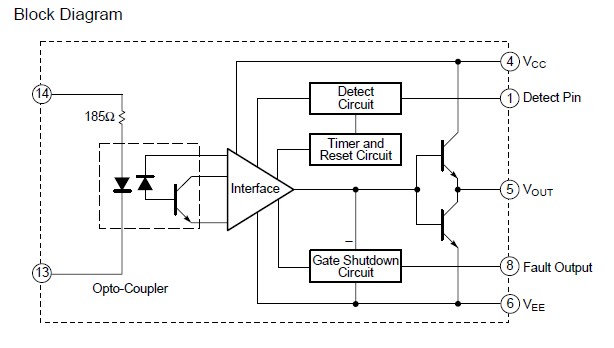

M57962L Block Diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

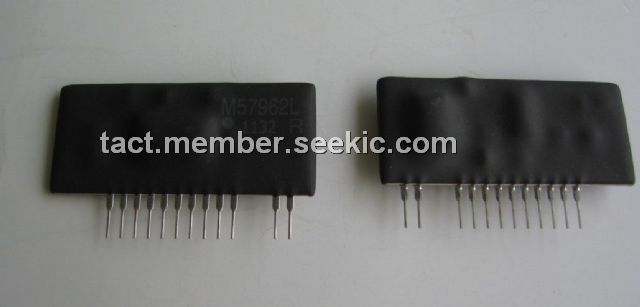

M57962L
M57962L

IC GATE DRVR FOR IGBT MOD
Data Sheet
0-1: $13.04
1-10: $11.86
10-100: $10.08
100-250: $9.19
250-500: $8.60
500-1000: $7.88
1000-2500: $7.59
2500-5000: $7.35
5000-10000: $7.11
