Product Summary

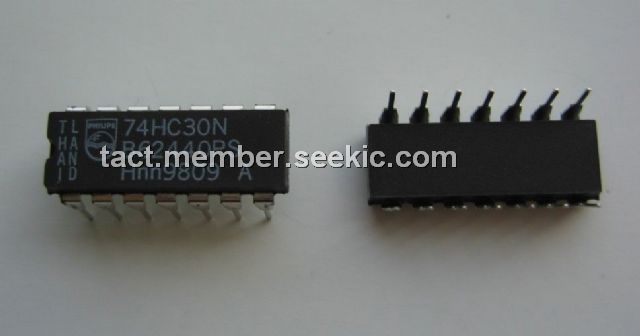

The 74HC30N is an 8-input NAND gate. The 74HC30N is a high-speed Si-gate CMOS device and is pin compatible with low power Schottky TTL (LSTTL). The 74HC30N is specified in compliance with JEDEC standard no. 7A. The 74HC30N provides the 8-input NAND function.
Parametrics
74HC30N absolute maximum ratings: (1)tPHL/ tPLH propagation delay, VCC = 5 V: 12 ns; (2)CI input capacitance: 3.5 pF; (3)CPD power dissipation capacitance per gate:15pF.
Features
74HC30N features: (1)Output capability: standard; (2)ICC category: SSI.

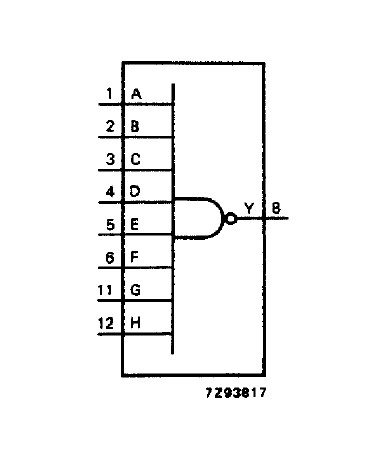

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 74HC30N,652 |
NXP Semiconductors |
Gates (AND / NAND / OR / NOR) 8-INPUT NAND GATE |
Data Sheet |
|
|
||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||
 |
74HC |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
|
