Product Summary
The NID5004NT4G is a self–protected FETs .This device is a series of power MOSFETs which utilize ON Semiconductor HDPlus technology. The self–protected MOSFET incorporates protection features such as integrated thermal and current limits. The protected MOSFETs include an integrated Drain to Gate Clamp that provides overvoltage protection from transients and avalanche. The device is protected from Electrostatic Discharge (ESD) by utilizing an integrated Gate to Source Clamp.
Parametrics
Absolute maximum ratings:(1)Drain_to_Source Voltage Internally Clamped, VDSS: ±44Vdc; (2)Gate_to_Source Voltage, VGS: 14Vdc; (3)Drain Current Continuous, ID: Internally Limited; (4)Total Power Dissipation, @ TA = 25°C (Note 1), PD: 1.3W; (5)Total Power Dissipation, @ TA = 25°C (Note 2), PD: 2.5W; (6)Thermal Resistance, Junction_to_Case, RθJC, 3.0°C/W; (7)Thermal Resistance, Junction_to_Ambient (Note 1), RθJA, 95°C/W; (8)Thermal Resistance, Junction_to_Ambient (Note 2), RθJA, 50°C/W; (9)Single Pulse Drain_to_Source Avalanche Energy(VDD = 30 Vdc, VGS = 5.0 Vdc,IL = 1.8 Apk, L = 160 mH, RG = 25 ), EAS: 273mJ; (10)Operating and Storage Temperature Range, TJ, Tstg: _55 to 150 °C.
Features
Features:(1)Short Circuit Protection; (2)In Rush Current Limit; (3)Thermal Shutdown with Automatic Restart; (4)Avalanche Rated; (5)Overvoltage Protection; (6)ESD Protection (4 kV HBM); (7)Controlled Slew Rate for Low Noise Switching; (8)AEC Q101 Qualified; (9)This is a Pb Free Device.

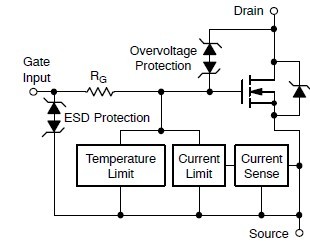

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 NID5004NT4G |
ON Semiconductor |
Power Driver ICs POWER MICROINTEGRAT |
Data Sheet |
Negotiable |
|
||||||||||||
