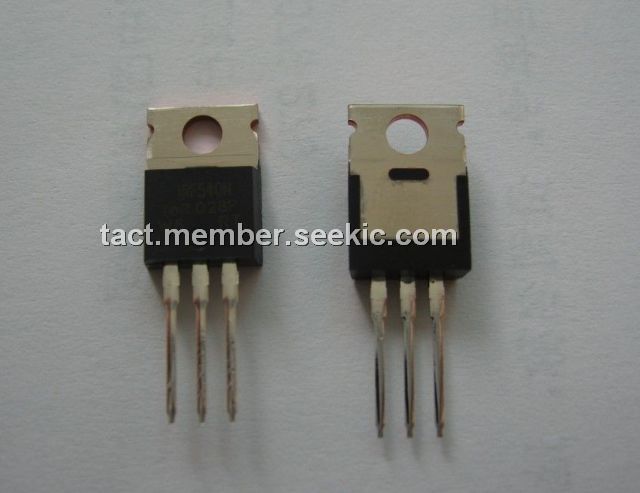

IRF540N

100V, 0.040 Ohm, N-Channel Power MOSFET

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.20~0.30 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.20~0.30

PartNumber:: IRF540N

Brand:: International Rectifier - IR | Pack: TO | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Toby's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-03-12

From Other Seller

Part Number:IRF540N
US $0.20 - 0.30
HCPL-7800A

US $2.50 - 4.10 / Piece
(0) Remove
CM2030-A0TR

US $0.92 - 2.50 / Piece
(0) Remove
Quantity:

piece

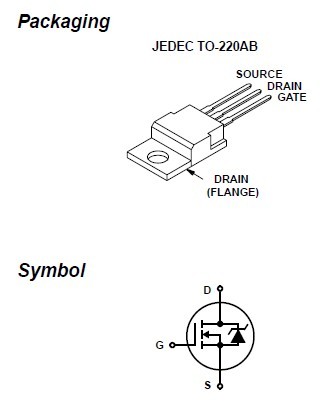

Product Summary

The IRF540N is 33A, 100V, 0.040 Ohm, N-Channel Power MOSFET, made by Intersil Corporation. This module is completely manufactured, assembled and tested under ISO9000 quality systems certification. Intersil Corporation reserves the right to make changes in circuit design and/or specifications at any time without notice.

Parametrics

Absolute maximum ratings:(1)Drain to Source Voltage (Note 1), VDSS: 100 V; (2)Drain to Gate Voltage (RGS = 20kΩ) (Note 1), VDGR 100 V; (3)Gate to Source Voltage, VGS ±20 V; (4)Drain Current, Continuous (TC= 25oC, VGS = 10V) (Figure 2), ID: 33A; (5)Drain Current, Continuous (TC= 100oC, VGS = 10V) (Figure 2) , ID: 23A; (6)Pulsed Drain Current, IDM: Figure 4; (7)Pulsed Avalanche Rating, UIS, Figures 6, 14, 15; (8)Power Dissipation, PD: 120W; (9)Derate Above 25oC: 0.80W/oC; (10)Operating and Storage Temperature, TJ, TSTG: -55 to 175oC; (11)Maximum Temperature for Soldering, Leads at 0.063in (1.6mm) from Case for 10s, TL: 300oC; (12)Package Body for 10s, See Techbrief TB334, Tpkg: 260oC.

Features

Features: (1)Ultra Low On-Resistance: rDS(ON) = 0.040Ω, VGS = 10V; (2)Simulation Models; (3)Temperature Compensated PSPICE and SABER Electrical Models; (4)Spice and SABER Thermal Impedance Models; (5)Peak Current vs Pulse Width Curve; (6)UIS Rating Curve.
