Product Summary

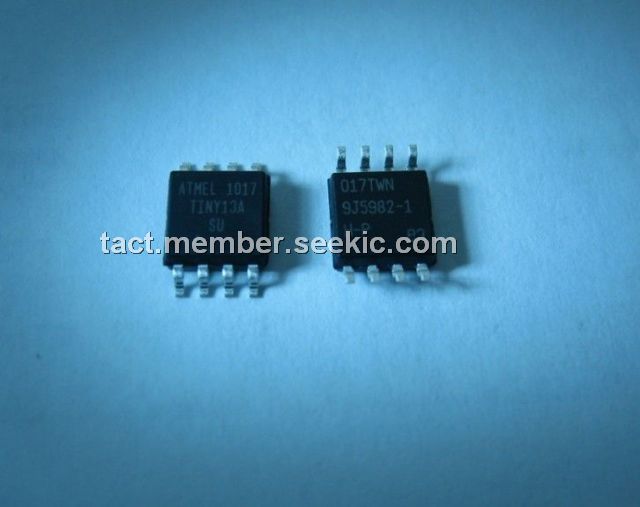

The ATTINY13A-SU is a low-power CMOS 8-bit microcontroller based on the AVR enhanced RISC architecture. By executing powerful instructions in a single clock cycle, the ATTINY13A-SU achieves throughputs approaching 1 MIPS per MHz allowing the system designer to optimize power consumption versus processing speed.
Parametrics
ATTINY13A-SU absolute maximum ratings: (1)Storage Temperature: -65℃ to +150℃; (2)Voltage on any Pin except RESET; (3)with respect to Ground: -0.5V to VCC+0.5V; (4)Voltage on RESET with respect to Ground: -0.5V to +13.0V; (5)Maximum Operating Voltage: 6.0V; (6)DC Current per I/O Pin: 40.0 mA; (7)DC Current VCC and GND Pins: 200.0 mA; (8)Operating Temperature: -55℃ to +125℃.
Features
ATTINY13A-SU features: (1)High Performance, Low Power AVR8-Bit Microcontroller; (2)Advanced RISC Architecture; (3)120 Powerful Instructions Most Single Clock Cycle Execution; (4)32 x 8 General Purpose Working Registers; (5)Fully Static Operation; (6)Up to 20 MIPS Througput at 20 MHz; (7)High Endurance Non-volatile Memory segments; (8)1K Bytes of In-System Self-programmable Flash program memory; (9)64 Bytes EEPROM; (10)64 Bytes Internal SRAM.

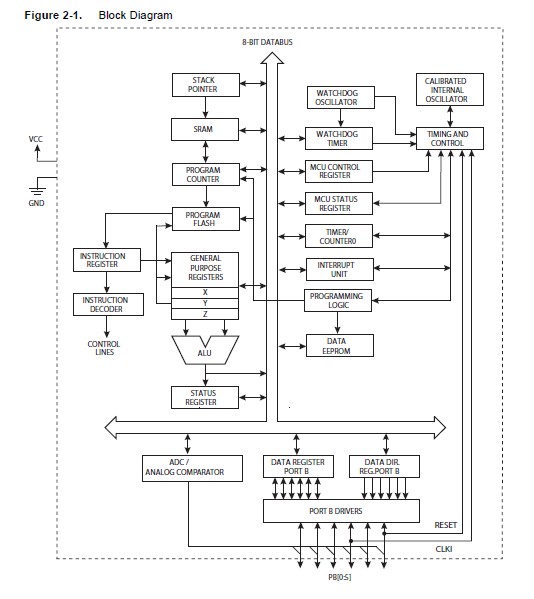

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 ATTINY13A-SU |
Atmel |
8-bit Microcontrollers (MCU) 1KB In-system Flash 20MHz 1.8V-5.5V |
Data Sheet |
|
|
||||||||||||
|
ATTINY13A-SUR |
Atmel |
8-bit Microcontrollers (MCU) AVR 1KB FL 64B EE 64B SRAM 20 MHz IND |
Data Sheet |
|
|
||||||||||||
