Product Summary

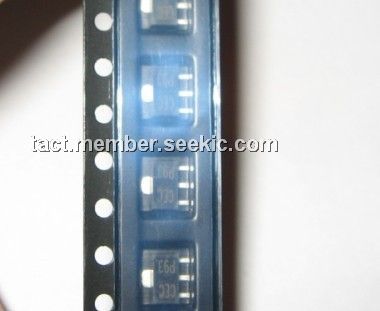

The BC869 is a PNP medium power transistor in a SOT89 plastic package. NPN complement: BC868. It is widely used in Low voltage, high current LF applications. This product is not designed for use in life support appliances, devices, or systems where malfunction of this product can reasonably be expected to result in personal injury.
Parametrics
Absolute maximum ratings:(1)collector-base voltage open emitter, VCBO: -32V; (2)collector-emitter voltage open base, VCEO: -20V; (3)emitter-base voltage open collector, VEBO: -5V; (4)collector current (DC), IC: 1A; (5)peak collector current, ICM: -2A; (6)peak base current, IBM: -200mA; (7)total power dissipation Tamb£ 25 °C; note 1, Ptot: -1.35W; (8)storage temperature, Tstg: -65 +150 °C; (9)junction temperature, Tj: -150 °C; (10)operating ambient temperature, Tamb: -65 +150°C.
Features
Features: (1)High current (max. 1 A); (2)Low voltage (max. 20 V).
Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
BC869 |
Other |
Data Sheet |
Negotiable |
|
||||||||||||||
BC869-16 T/R |
NXP Semiconductors |
Transistors Bipolar (BJT) TRANS MED PWR TAPE-7 |
Data Sheet |
Negotiable |
|
|||||||||||||
BC86916TA |
Diodes Inc. / Zetex |
Transistors Bipolar (BJT) - |
Data Sheet |
Negotiable |
|
|||||||||||||
BC869-25 T/R |
NXP Semiconductors |
Transistors Bipolar (BJT) TRANS MED PWR TAPE-7 |
Data Sheet |
Negotiable |
|
|||||||||||||
BC869-25,115 |
NXP Semiconductors |
Transistors Bipolar (BJT) TRANS MED PWR TAPE-7 |
Data Sheet |
|
|
|||||||||||||
BC869TA |
TRANSISTOR PNP BIPOL -20V SOT-89 |
Data Sheet |
Negotiable |
|
||||||||||||||
BC869,115 |
NXP Semiconductors |
Transistors Bipolar (BJT) PNP 20V 1A |
Data Sheet |
|
|
|||||||||||||
BC869 /T3 |
NXP Semiconductors |
Transistors Bipolar (BJT) TRANS MED PWR TAPE13 |
Data Sheet |
Negotiable |
|
