QM20KD-HB

medium power switching, insulated type, mitsubishi transistor module, 1A, 600V

Rated 5 Rating 5 | reviews | Write a review

Price:: US $20.00~30.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $20.00~30.00

PartNumber:: QM20KD-HB

Brand:: MITSUBISHI Electronics - MITSUBISHI | Pack: DIP | D/C: 06+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Toby's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-11-28

From Other Seller

Part Number:QM20KD-HB
US $20.00 - 30.00
EKZE250ELL152MK25S

US $0.10 - 1.00 / Piece
(0) Remove
LM64P101

US $240.00 - 300.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

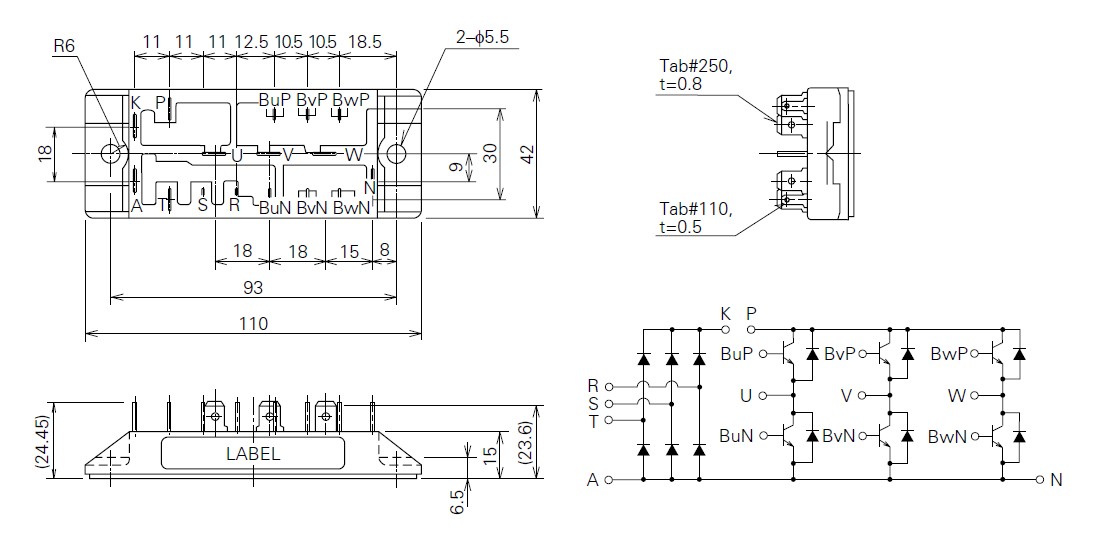

The QM20KD-HB is a medium power switching, insulated type mitsubishi transistor module.

Parametrics

QM20KD-HB absolute maximum ratings: (1)Collector-emitter voltage VCEX (SUS). IC=1A VEB=2V: 600V; (2)Collector-emitter voltage VCEX. VEB=2V: 600V; (3)Collector-base voltage VCBO. Emitter open: 600V; (4)Emitter-base voltage VEBO. Collector open: 7V; (5)Collector current IC –IC: 20A; (6)Collector reverse current PC. TC=25℃: 83W; (7)Base current DC: 1A; (8)Surge collector reverse current(forward diode current). Peak value of one cycle of 60Hz (half wave): 200A.

Features

QM20KD-HB features: (1)IC Collector current 20A; (2)VCEX Collector-emitter voltage 600V; (3)hFE DC current gain 250; (4)Insulated Type; (5)UL Recognized.
