BTS428L2

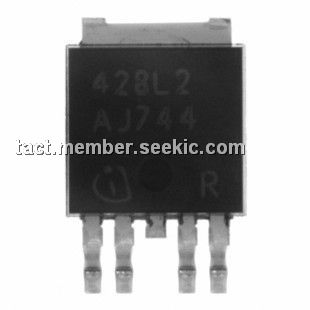

SWITCH HIGH SIDE POWER TO252-5 - BTS428L2

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.40~0.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.40~0.50

PartNumber:: BTS428L2

Brand:: Infineon Technologies AG - Infineon | Pack: TO | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Toby's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-04-25

From Other Seller

Part Number:BTS428L2
US $0.40 - 0.50
ECA1HHG100

US $10.00 - 10.00 / Piece
(0) Remove
ad7716ap

US $1.13 - 1.13 / Piece
(0) Remove
Quantity:

piece

Product Summary

The BTS428L2 is N channel vertical power MOSFET with charge pump, ground referenced CMOS compatible input and diagnostic feedback, and monolithically integrated in Smart SIPMOS technology. What is more, it is able to provide embedded protective functions. It is generally used to replaces electromechanical relays, fuses and discrete circuits.

Parametrics

Absolute maximum ratings:(1)Supply voltage, Vbb: 43 V; (2)Supply voltage for full short circuit protection Tj Start=minus 40 to +150°C, Vbb: 24 V; (3)Load dump protection1) VLoadDump = VA + Vs, VA = 13.5 V, RI2)= 2 Ω, RL= 4.0 Ω, td= 200 ms, IN= low or high, VLoad dump: 60V; (4)Load current (Current limit), IL: self-limited A; (5)Operating temperature range, Tj: minus 40 to +150°C; (6)Storage temperature range, Tstg:minus 55 to +150°C; (7)Power dissipation (DC), TC ≤ 25 °C, Ptot: 75 W; (8)Maximal switchable inductance, single pulse, Vbb = 12V, Tj,start = 150°C, TC = 150°C const. IL(ISO) = 7 A, RL = 0 Ω; E4)AS=0.19J, ZL: 5.6mH; (9)Electrostatic discharge capability (ESD) IN, VESD: 1.0kV; (10)Electrostatic discharge capability (Human Body Model), VESD ST:4.0kV; (11)out to all other pins shorted, VESD:8.0kV; (12)Input voltage (DC), VIN: minus 10 to +16 V; (13)Current through input pin (DC), IIN: ±2.0mA; (14)Current through status pin (DC), IST; ±5.0mA.

Features

Features: (1)Very low standby current; (2)CMOS compatible input; (3)Improved electromagnetic compatibility (EMC); (4)Fast demagnetization of inductive loads; (5)Stable behaviour at undervoltage; (6)Wide operating voltage range; (7)Logic ground independent from load ground.
