Product Summary

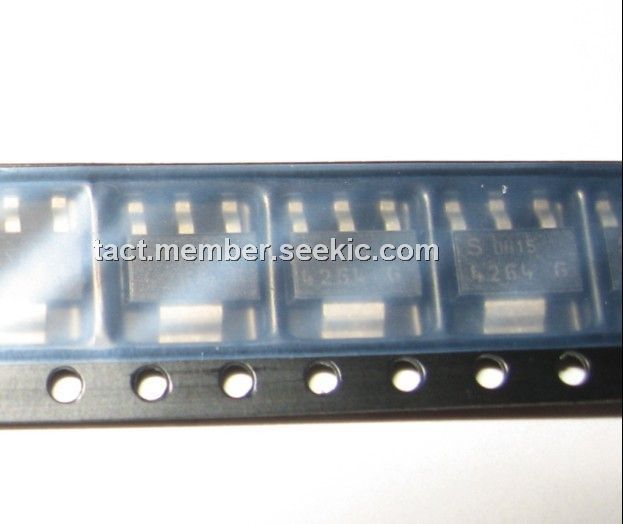

The TLE4264G is a 5-V low-drop fixed-voltage regulator in an SOT-223 package. The IC regulates an input voltage VI in the range 5.5 V < VI < 45 V to VQrated = 5.0 V. The maximum output current is more than 120 mA. This IC is short circuit proof and features temperature protection that disables the circuit at over temperature.

Parametrics

Absolute maximum ratings:(1)Input voltage, VI: minus 42 to 45V; (2)Input current II: limited internally; (3)Output voltage, VQ:1 to 16V; (4)Output current. IQ: limited internally; (5)Current IGND, 50mA; (6)Junction temperature, Tj: minus 150 °C; (7)Storage temperature, Tstg: 50 150 °C; (8)Input voltage, VI: 5.5 to 45V; (9)Junction temperature, Tj: minus 40 to 150°C; (10)System-air Rth, SA: 100 K/W soldered in System-case Rth SC25 K/W.

Features

Features:(1)Output voltage tolerance ￡ ± 2 %; (2)Low-drop voltage; (3)Very low current consumption; (4)Overtemperature protection; (5)Short-circuit proof; (6)Suitable for use in automotive electronics; (7)Reverse polarity.

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
TLE4264G
TLE4264G
Infineon Technologies
Low Dropout (LDO) Regulators 5V LW Drop VOLT REGULATOR 200mA
Data Sheet
0-1: $1.01
1-10: $0.91
10-100: $0.71
100-250: $0.56
TLE4264GXT
TLE4264GXT
Infineon Technologies
Low Dropout (LDO) Regulators 5-V Low Drop Fixed Voltage Regulator
Data Sheet
0-1: $0.59
1-10: $0.53
10-100: $0.49
100-500: $0.45
500-1000: $0.41
