Product Summary
The MCL4148-TR is a silicon epitaxial planar diode.
Parametrics
MCL4148-TR absolute maximum ratings: (1)Repetitive peak reverse voltage VRRM: 100 V; (2)Reverse voltage VR: 75 V; (3)Peak forward surge current tp=1s IFSM: 2 A; (4)Repetitive peak forward current IFRM: 450 mA; (5)Forward current IF: 200 mA; (6)Average forward current VR=0 IFAV: 150 mA; (7)Power dissipation PV: 500 mW; (8)Junction temperature Tj: 175 ℃; (9)Storage temperature range Tstg: –65 +175 ℃.
Features
MCL4148-TR features: (1)Saving space; (2)Hermetic sealed parts; (3)Fits onto SOD 323 / SOT 23 footprints; (4)Electrical data identical with the devices 1N4148 and 1N4448 respectively; (5)Micro Melf package.

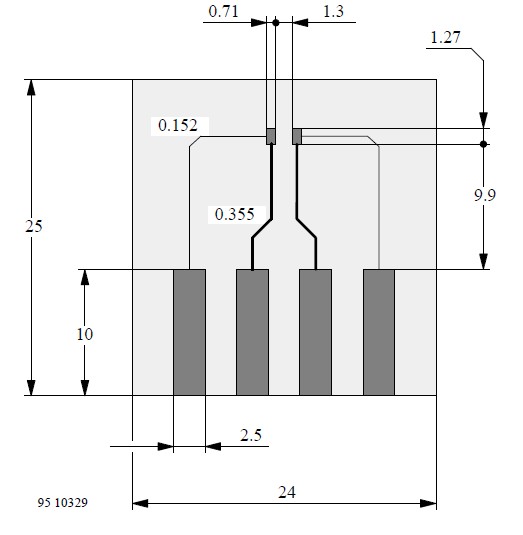

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MCL4148-TR |
Vishay Semiconductors |
Diodes (General Purpose, Power, Switching) 100 Volt 350mA |
Data Sheet |
|
|
||||||||||||
|
MCL4148-TR3 |
Vishay Semiconductors |
Diodes (General Purpose, Power, Switching) 100 Volt 350mA 2.0 Amp IFSM |
Data Sheet |
|
|
||||||||||||
