Product Summary

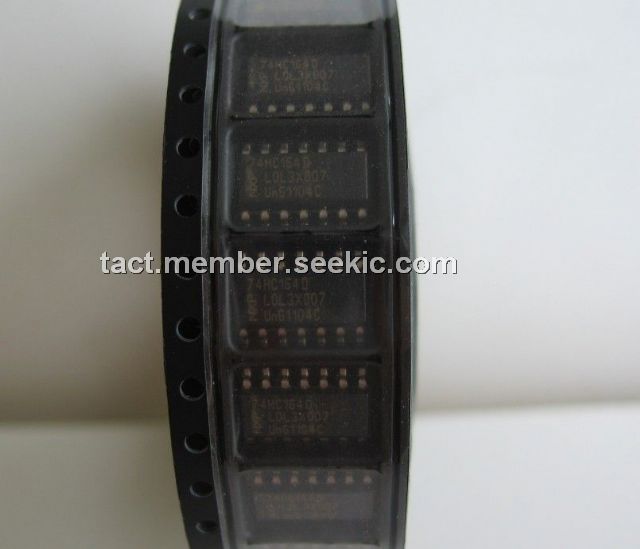

The 74HC164D is a high-speed Si-gate CMOS device and is pin compatible with Low power Schottky TTL (LSTTL). It is specified in compliance with JEDEC standard no. 7A. The 74HC164D is an 8-bit edge-triggered shift register with serial data entry and an output from each of the eight stages. Data is entered serially through one of two inputs (DSA or DSB); either input of the 74HC164D can be used as an active HIGH enable for data entry through the other input.
Parametrics
74HC164D absolute maximum ratings: (1)VCC supply voltage: -0.5 +7 V; (2)IIK input diode current VI < -0.5 V or; (3)VI > VCC + 0.5 V: ±20 mA; (4)IOK output diode current VO < -0.5 V or; (5)VO > VCC + 0.5 V: ±20 mA; (6)IO output source or sink current VO = -0.5 V to VCC + 0.5 V:±25 mA; (7)ICC, IGND VCC or GND current: ±50 mA; (8)Tstg storage temperature: -65 +150 ℃.
Features
74HC164D features: (1)Gated serial data inputs; (2)Asynchronous master reset; (3)Complies with JEDEC standard no. 7A; (4)ESD protection: HBM EIA/JESD22-A114-B exceeds 2000 V. MM EIA/JESD22-A115-A exceeds 200 V.; (5)Multiple package options; (6)Specified from -40℃ to +85℃ and -40℃ to +125℃.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 74HC164D |
NXP Semiconductors |
Counter Shift Registers 8-BIT SI-PO SHIFT REGISTER |
Data Sheet |
Negotiable |
|
||||||||||||
|
74HC164D,652 |
NXP Semiconductors |
Counter Shift Registers 8-BIT SI-PO SHIFT |
Data Sheet |
|
|
||||||||||||
|
74HC164D,653 |
NXP Semiconductors |
Counter Shift Registers 8BIT SHIFT REGISTER PAR-IN/SERIAL-OUT |
Data Sheet |
|
|
||||||||||||
|
74HC164DB,118 |
NXP Semiconductors |
Counter Shift Registers 8-BIT SI-PO SHIFT |
Data Sheet |
|
|
||||||||||||
|
74HC164DB,112 |
NXP Semiconductors |
Counter Shift Registers 8-BIT SI-PO SHIFT |
Data Sheet |
|
|
||||||||||||
|
74HC164DB |
NXP Semiconductors |
Counter Shift Registers 8-BIT SI-PO SHIFT REGISTER |
Data Sheet |
Negotiable |
|
||||||||||||
|
74HC164DB-T |
NXP Semiconductors |
Counter Shift Registers 8-BIT SI-PO SHIFT REGISTER |
Data Sheet |
Negotiable |
|
||||||||||||
