Product Summary

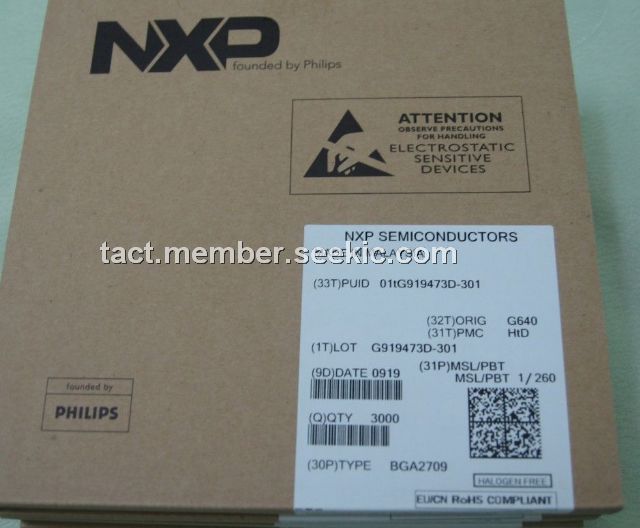

The BGA2709 is a MMIC wideband amplifier. Silicon Monolithic Microwave Integrated Circuit (MMIC) wideband amplifier with internal matching circuit in a 6-pin SOT363 SMD plastic package. This product is supplied in anti-static packing to prevent damage caused by electrostatic discharge during transport and handling.
Parametrics
Absolute maximum ratings:(1)DC supply voltage RF input AC coupled,VS: 6V; (2)supply current, IS: 35 mA; (3)total power dissipation, Ptot, Ts ＜90°C: 200mW; (4)storage temperature, Tstg: －65 +150 °C; (5)operating junction temperature, Tj: 150°C; (6)maximum drive power, PD: 10dBm.
Features
Features: (1)Internally matched to 50 W; (2)Very wide frequency range (3.6 GHz at 3 dB bandwidth); (3)Flat 23 dB gain (DC to 2.6 GHz at 1 dB flatness); (4)12.5 dBm saturated output power at 1 GHz; (5)High linearity (22 dBm OIP3 at 1 GHz); (6)Unconditionally stable (K > 1.2).

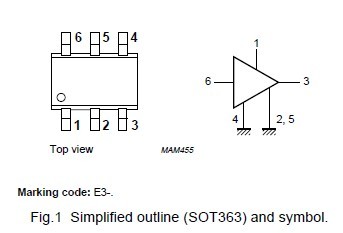

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 BGA2709 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
 |
BGA2709,115 |
NXP Semiconductors |
RF Amplifier TAPE-7 MMIC-RFSS |
Data Sheet |
|
|
||||||||||||
