Product Summary
The 74HC574N is a high-speed Si-gate CMOS device and is pin compatible with low power Schottky TTL (LSTTL). The 74HC574N is specified in compliance with JEDEC standard no. 7A. The 74HC574N is octal D-type flip-flops featuring separate D-type inputs for each flip-flop and non-inverting 3-state outputs for bus oriented applications. A clock (CP) and an output enable (OE) input are common to all flip-flops.
Parametrics
74HC574N absolute maximum ratings: (1)tPHL/ tPLH propagation delay CP to Qn CL = 15 pF; VCC=5 V: 14 15 ns; (2)fmax maximum clock frequency: 123 76 MHz; (3)CI input capacitance: 3.5 3.5 pF; (4)CPD power dissipation capacitance per flip-flop: 22 25 pF; (5)tsu set-up time Dn to CP: 12 ns; (6)th hold time Dn to CP: 5 ns; (7)fmax maximum clock pulse frequency: 30MHz.
Features
74HC574N features: (1)3-state non-inverting outputs for bus oriented applications; (2)8-bit positive edge-triggered register; (3)Common 3-state output enable input; (4)Independent register and 3-state buffer operation; (5)Output capability: bus driver; (6)ICC category: MSI.

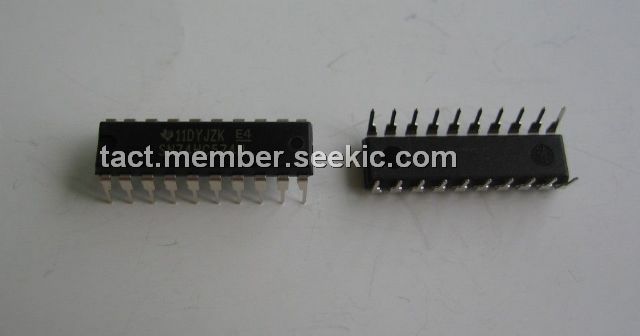

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 74HC574N |
NXP Semiconductors |
Flip Flops OCTAL D F/F POS-EDGE 3STATE |
Data Sheet |
Negotiable |
|
||||||||||||
|
74HC574N,652 |
NXP Semiconductors |
Flip Flops OCTAL D F/F POS-EDGE |
Data Sheet |
|
|
||||||||||||
