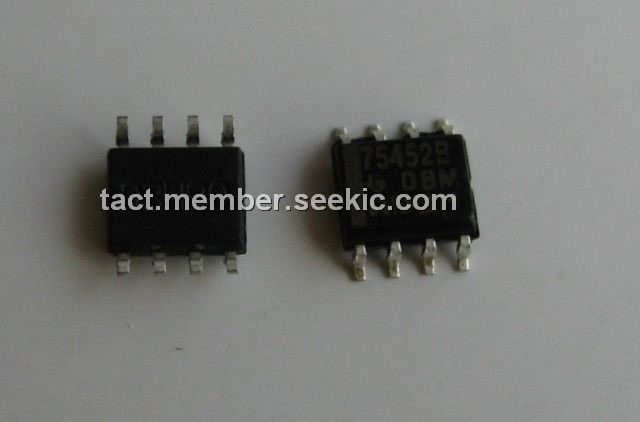

SN75452B

dual peripheral driver, High-Voltage Outputs, High-Speed Switching, 300mA, SOP8

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.20~0.30 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.20~0.30

PartNumber:: SN75452B

Brand:: Texas Instruments - TI | Pack: SOP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Toby's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-11-28

From Other Seller

Part Number:SN75452B
US $0.20 - 0.30
EKXG401ELL6R8MJ16S

US $5.00 - 5.00 / Piece
(0) Remove
ECA1HHG220

US $2.00 - 10.00 / Piece
(0) Remove
Quantity:

piece

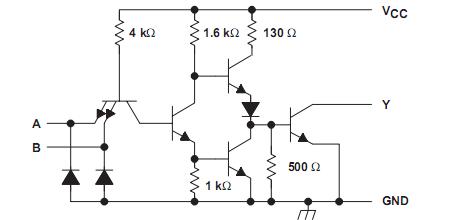

Product Summary

The SN75452B is a dual peripheral driver. It is designed for use in systems that employ TTL logic. The SN75452B is functionally interchangeable with and replaces the SN75450 family and the SN75450A family devices manufactured previously. The typical applications of the SN75452B include high-speed logic buffers, power drivers, relay drivers, lamp drivers, MOS drivers, line drivers, and memory drivers.

Parametrics

SN75452B absolute maximum ratings: (1)Supply voltage:7V; (2)Input voltage:5.5V; (3)Inter-emitter voltage:5.5V; (4)Off-state output voltage:30V; (5)Continuous collector or output current:400mA; (6)Peak collector or output current:500mA; (7)Operating free-air temperature range:0℃ to 70℃; (8)Storage temperature range:-65℃ to 150℃; (9)Lead temperature 1,6 mm (1/16 inch) from case for 60 seconds:260℃.
