Product Summary

The SJA1000T is a stand-alone controller for the Controller Area Network (CAN) used within automotive and general industrial environments. It is the successor of the PCA82C200 CAN controller (BasicCAN) from Philips Semiconductors. Additionally, a new mode of operation is implemented (PeliCAN) which supports the CAN 2.0B protocol specification with several new features.

Parametrics

Absolute maximum ratings: (1)supply voltage: -0.5 +6.5 V; (2)input/output current on all pins except TX0 and TX1: ±4 mA; (3)sink current of TX0 and TX1 together: 30 mA; (4)source current of TX0 and TX1 together: -20 mA; (5)operating ambient temperature: -40 +125 °C; (6)storage temperature: -65 +150 °C; (7)total power dissipation: 1.0 W.

Features

Features: (1)Pin compatibility to the PCA82C200 stand-alone CAN controller; (2)Electrical compatibility to the PCA82C200 stand-alone CAN controller; (3)PCA82C200 mode (BasicCAN mode is default); (4)Extended receive buffer (64-byte FIFO); (5)CAN 2.0B protocol compatibility (extended frame passive in PCA82C200 compatibility mode); (6)Supports 11-bit identifier as well as 29-bit identifier; (7)Bit rates up to 1 Mbits/s.

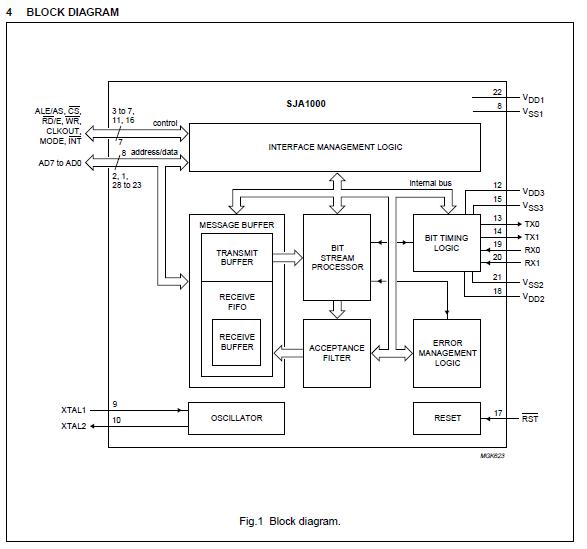

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
SJA1000T
SJA1000T
Other

Data Sheet
Negotiable
SJA1000T/N,112
SJA1000T/N,112

IC STAND-ALONE CAN CTRLR 28-SOIC
Data Sheet
Negotiable
SJA1000T/N,118
SJA1000T/N,118

IC STAND-ALONE CAN CTRLR 28-SOIC
Data Sheet
Negotiable
SJA1000T/N1,112
SJA1000T/N1,112
NXP Semiconductors
Network Controller & Processor ICs STAND-ALONE CAN CONTROLLER
Data Sheet
0-1: $3.29
1-25: $2.63
25-100: $2.17
100-250: $1.97
SJA1000T/N1,118
SJA1000T/N1,118
NXP Semiconductors
Network Controller & Processor ICs STAND ALONE CAN
Data Sheet
0-1: $3.41
1-25: $2.75
25-100: $2.29
100-250: $2.09
SJA1000TD-T
SJA1000TD-T
NXP Semiconductors
Network Controller & Processor ICs STAND ALONE CAN CONTROLLER
Data Sheet
Negotiable
