Product Summary
The BTS115A is the N channel Logic level Enhancement mode temperature sensor with thyristor characteristic.
Parametrics
BTS115A absolute maximum ratings: (1)Drain-source voltage VDS: 50 V; (2)Drain-gate voltage, RGS = 20 kΩ, VDGR: 50 V; (3)Gate-source voltage VGS: ± 10 V; (4)Continuous drain current, TC = 25℃ ID: 15.5 A; (5)ISO drain current, TC = 85℃, VGS = 4.5 V, VDS = 0.5 V: 3.2 A; (6)Pulsed drain current, TC = 25 ℃: 62A; (7)Short circuit current, Tj = – 55 to + 150℃: 37 A; (8)Short circuit dissipation, Tj= – 55 to + 150℃: 550 W; (9)Power dissipation Ptot: 50 W; (10)Operating and storage temperature range: – 55 to + 150℃.
Features
BTS115A features: (1)N channel; (2)Logic level; (3)Enhancement mode; (4)Temperature sensor with thyristor characteristic; (5)The drain pin is electrically shorted to the tab.

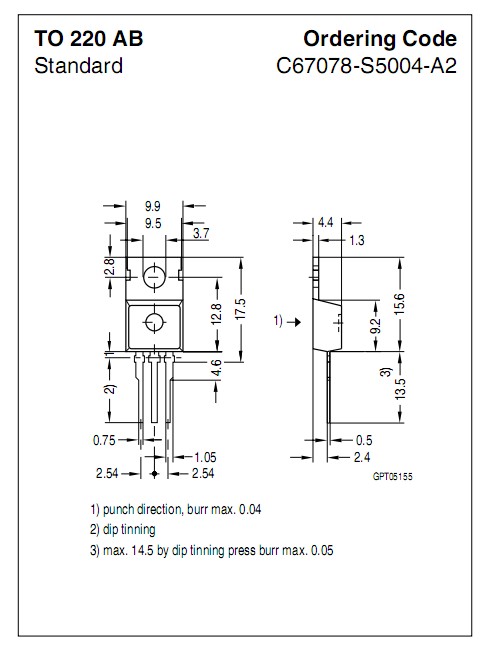

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 BTS115A |
Infineon Technologies |
MOSFET N-Channel 50V TEMPFET |
Data Sheet |
|
|
||||||||||||
 |
BTS115A E3045A |
Infineon Technologies |
MOSFET N-Channel 50V TEMPFET |
Data Sheet |
|
|
||||||||||||
