Product Summary

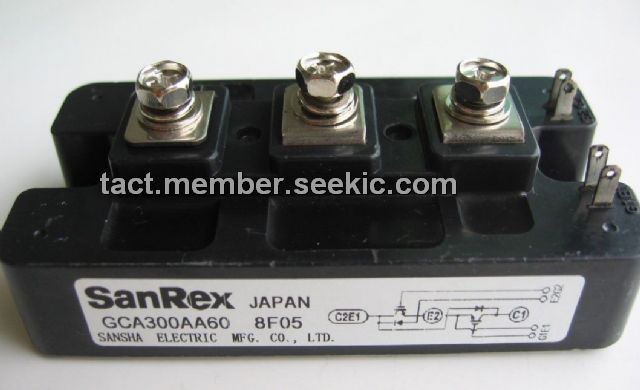

The SanRex IGBT Module GCA300AA60 is designed for high speed, high current switching applications. This Module is electrically isolated and contains two IGBTs connected in series with a fast switching, soft recovery diode (trr=0.1μs) reverse connected across each IGBT.
Parametrics
GCA300AA60 absolute maximum ratings: (1)Collector-Emitter Voltage with gate terminal shorted to emitter: 1200 V; (2)Gate-Emitter Voltage with collector shorted to emitter:±20 V; (3)Collector Current, DC: 300A; (4)Collector Current, Pulse (1 ms ): 600A; (5)Reverse Collector Current: 300A; (6)Total Power Dissipation, Tc 25℃: 2100W; (7)Junction Temperature: 150℃; (8)Storage Temperature: 40 to 125℃.
Features
GCA300AA60 features: (1)Ic 300A VCES 1200V; (2)VCE sat 3.0V Typ; (3)tf 0.10 s Typ; (4)Soft recovery diode.

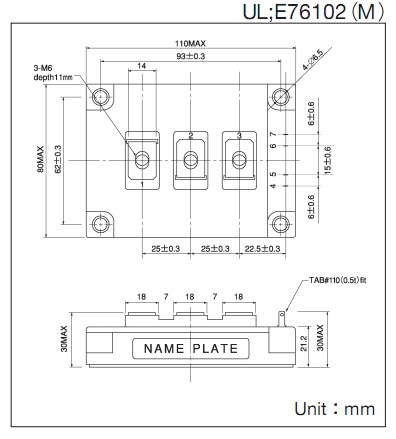

Diagrams
 |
