Product Summary

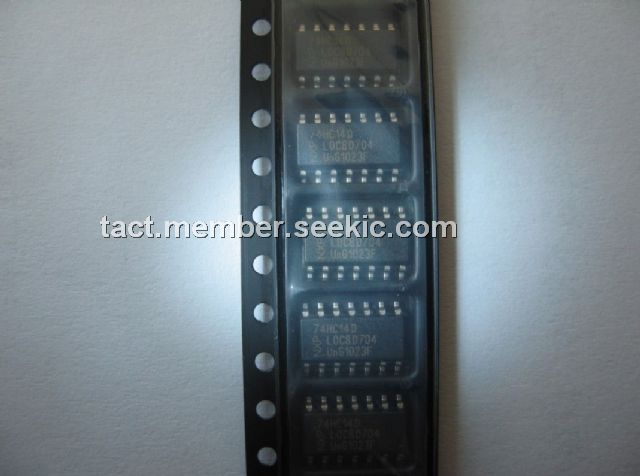

The 74HC14D is high-speed Si-gate CMOS devices and is pin compatible with low power Schottky TTL (LSTTL). It is specified in compliance with JEDEC standard no. 7A. The 4HC14D provides six inverting buffers with Schmitt-trigger action. It is capable of transforming slowly changing input signals into sharply defined, jitter-free output signals.
Parametrics
Absolute maximum ratings:(1)supply voltage, VCC: -0.5 to +7V; (2)input diode current, VI < -0.5V or VI > VCC + 0.5V, IIK: ±20mA; (3)output source or sink current, -0.5V < VO < VCC + 0.5V, IO: ±25mA; (4)VCC or GND current, ICC; IGND: 50mA; (5)storage temperature, Tstg: minus 65 to +150°C.
Features
Features: (1)Applications: Wave and pulse shapers, Astable multivibrators, Monostable multivibrators; (2)Complies with JEDEC standard no 7A; (3)ESD protection: HBM EIA/JESD22-A114-A exceeds 2000V, MM EIA/JESD22-A115-A exceeds 200 V; (4)Specified from -40 to +85 °C and -40 to +125 °C.

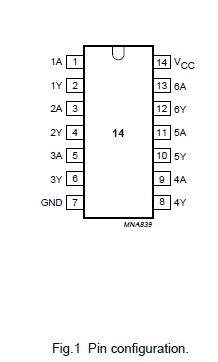

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 74HC14D |
NXP Semiconductors |
Inverters HEX INV SCHMITT TRIG |
Data Sheet |
Negotiable |
|
||||||||||||
|
74HC14D,652 |
NXP Semiconductors |
Inverters HEX INV SCHMITT TRIG |
Data Sheet |
|
|
||||||||||||
|
74HC14D,653 |
NXP Semiconductors |
Inverters HEX INVERTER SCHMITT TRIGGER |
Data Sheet |
|
|
||||||||||||
|
74HC14DB,112 |
NXP Semiconductors |
Inverters HEX INV SCHMITT TRIG |
Data Sheet |
|
|
||||||||||||
 |
74HC14DB,118 |
NXP Semiconductors |
Inverters HEX INVERTER SCHMITT |
Data Sheet |
|
|
||||||||||||
|
74HC14DB-T |
NXP Semiconductors |
Inverters HEX INVERTER SCHMITT TRIGGER |
Data Sheet |
Negotiable |
|
||||||||||||
 |
74HC14DR2G |
ON Semiconductor |
Inverters HEX SCHMITT TRIGGER INVERTER |
Data Sheet |
|
|
||||||||||||
 |
74HC14DTR2G |
ON Semiconductor |
Inverters HEX SCHMITT TRIGGER INVERTER |
Data Sheet |
|
|
||||||||||||
